5754
ASTM B209 / AlMg3 / 5754 / H22
| Chemical Properties | % Value |
| Silicon (Si) | 0,00 - 0,25 |
| Chromium (Cr) | 0,05 - 0,20 |
| Manganese (Mn) | 0,00 - 0,50 |
| Magnesium (Mg) | 2,60 - 3,60 |
| Copper (Cu) | 0,00 - 0,10 |
| Titanium (Ti) | 0,00 - 0,20 |
| Iron (Fe) | 0,00 - 0,40 |
| Zinc (Zn) | 0,00 - 0,25 |
| Aluminium (Al) | Balance |
| Physical Properties | Value |
| Density | 2,66 g/cm³ |
| Melting Point | 586 °C |
| Thermal Expansion | 23.9 µm/m.°C |
| Modulus of Elasticity | 69 GPa |
| Thermal Conductivity | 130 W/m.K |
| Electrical Resistivity | %29 IACS |
| Mechanical Properties | Value |
| Proof Strength | 150 MPa |
| Yield Strength | 240 MPa |
| Shear Strength | 140 MPa |
| Elongation A50 mm | 8% |
| Hardness | 63 HB |
5754 H22 exhibits mid strength and is applicable for general industry uses.
ALLOY DESIGNATIONS
5754 H22 has the following standard designations and specifications.
Sheets per; 5754 H22, ASTM B209, UNS A95754, WNR 3.3535, UNI AlMg3.5, UNE L-3390, AFNOR A-G3M
Choosing Factors for 5754 H22
- Strength: Medium
- Machining: Poor
- Weldability: Very good
- Formability: Moderate
- Corrosion Resistance: Okay
- Heat Treating: No
Some Well-Known Applications for 5754 H22
Fishing and marine applications,
It is used in welded structures in chemical and oil industries
Also in tank truck trailers.
SUPPLIED FORMS
5754 H22 is produced/supplied in the sheet form.
- Sheet
DELIVERY:

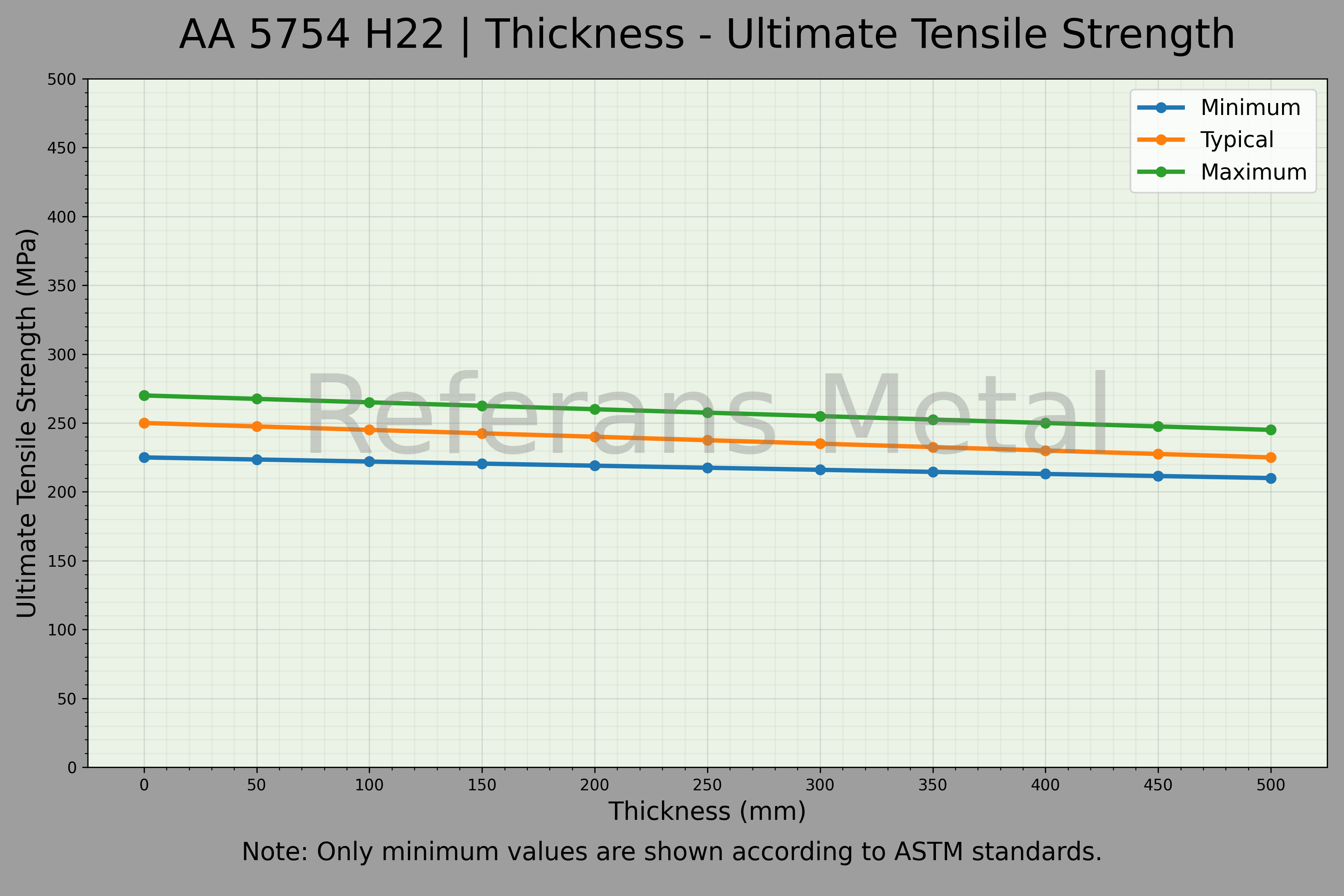

| Mechanical Properties | |||
| Thickness (mm) | Proof Strength (Min.) | Yield Strength (Min.) | Elongation A50 mm % |
| Over 0.2 up to & incl. 0.5 mm | 130 MPa | 220–270 MPa | 7% |
| Over 0.5 up to & incl. 1.5 mm | 130 MPa | 220–270 MPa | 8% |
| Over 1.5 up to & incl. 3.0 mm | 130 MPa | 220–270 MPa | 10% |
| Over 3.0 up to & incl. 6.0 mm | 130 MPa | 220–270 MPa | 11% |
| Over 6.0 up to & incl. 12.5 mm | 130 MPa | 220–270 MPa | 10% |
| Over 12.5 up to & incl. 40.0 mm | 130 MPa | 220–270 MPa | 9% |
