6351
EN AW / AlSi1Mg0.5Mn / 6351 / T6
| 化学性质 | % 值 |
| Silicon (Si) | 0,70 - 1,30 |
| Manganese (Mn) | 0,40 - 0,80 |
| Magnesium (Mg) | 0,40 - 0,80 |
| Copper (Cu) | 0,00 - 0,10 |
| Titanium (Ti) | 0,00 - 0,20 |
| Iron (Fe) | 0,00 - 0,50 |
| Zinc (Zn) | 0,00 - 0,20 |
| Aluminium (Al) | 96 - 98,5 |
| 物理特性 | 值 |
| Density | 2.71 g/cm³ |
| Melting Point | 554 °C |
| Thermal Expansion | 23 µm/m-K |
| Modulus of Elasticity | 68.9 GPa |
| Thermal Conductivity | 176 W/m.K |
| Electrical Resistivity | 46 % IACS |
| 机械性能 | 值 |
| Proof Strength | 283 MPa |
| Yield Strength | 310 MPa |
| Shear Strength | 200 MPa |
| Elongation A50 mm | 14 % |
| Hardness | 95 HB |
6351 is a material of Machine and Aerospace industry with a medium level of strength. It has higher resistance than 6061.It has excellent corrosion resistance.
ALLOY DESIGNATIONS
6351 T6 has the following standard designations and specifications.
Extruded Round/Flat Bar and Tubes per; 6351 T6, ISO AlSi1Mg0.5Mn, UNS A96351, AFNOR A-SGM0.7
Choosing Factors for 6351 T6
- Strength: Moderate
- Machining: Okay
- Weldability: Very good
- Formability: Very good
- Corrosion Resistance: Excellent
- Heat Treating: Yes
Some Well-Known Applications for 6351 T6
In food processing machines,
As components of recreational vehicles,
It is also used in marine and defence industries.
SUPPLIED FORMS

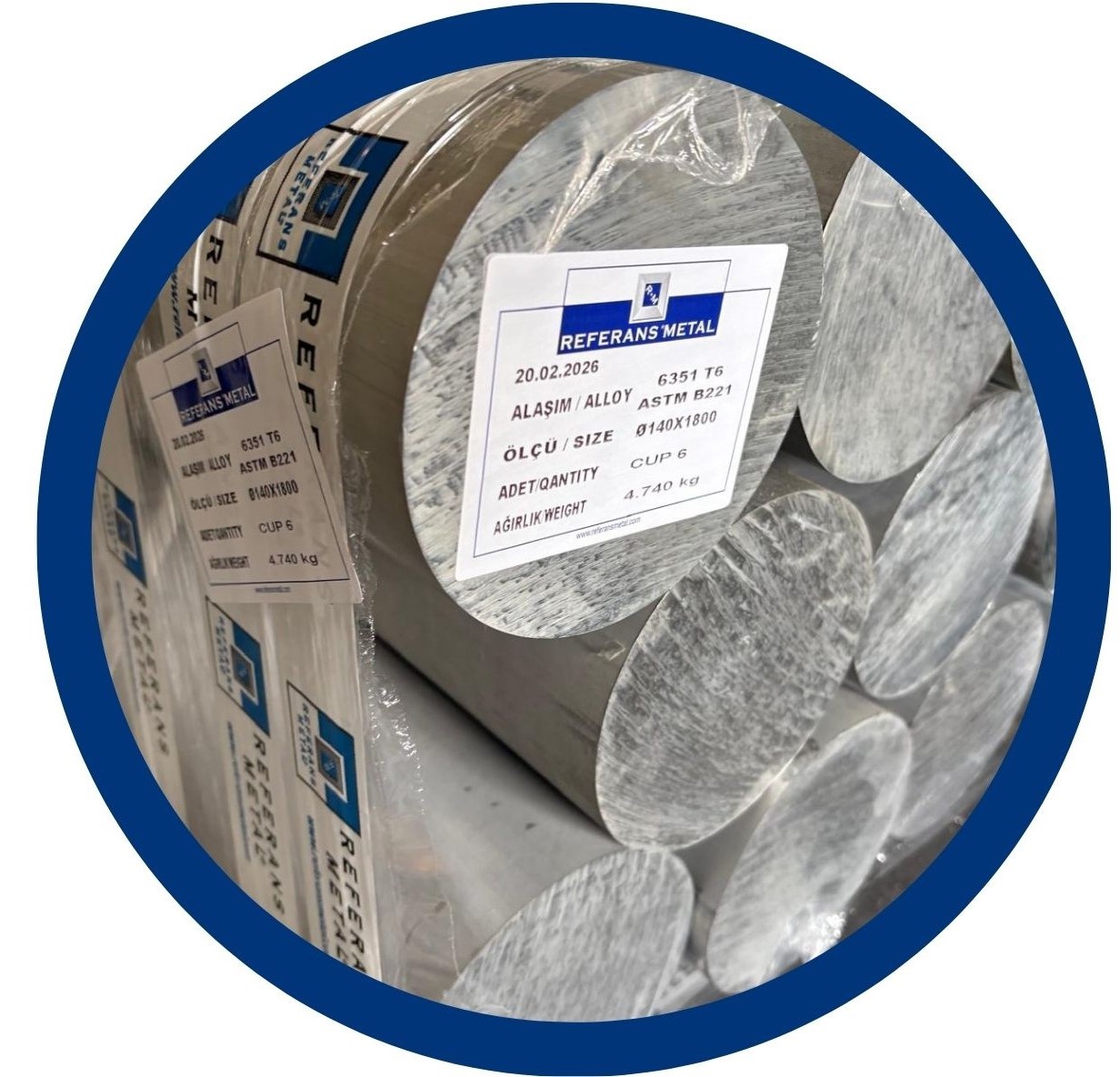

6351 T6 is produced/supplied in round/flat bar and tube/profile forms.
- Rod / Round Bar / Flat Bar
- Tube/Profile
